Special pricing available

Call for freight rates outside Ontario

Makita

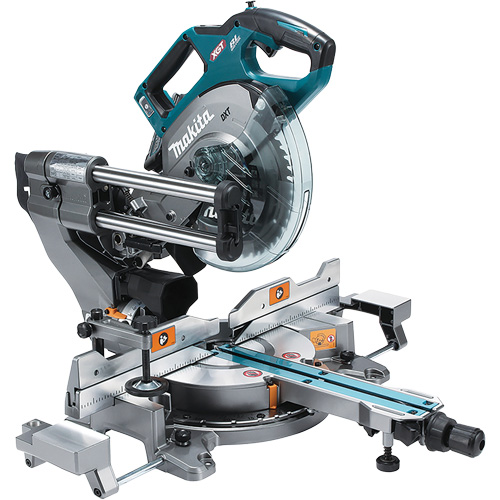

XGT Brushless Dual Compound Mitre Saw with AWS

Model: UAZ773

Mfr. No.: LS002GM102

  • XGT Brushless Dual Compound Mitre Saw with AWS OSI Industrial Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,312.89 / Each

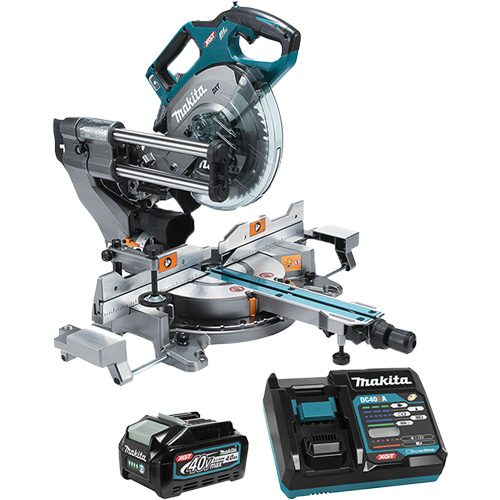

Components:

Includes

  • 40Vmax XGT (4.0Ah) Li-Ion Battery BL4040
  • Rapid Charger
  • 8-1/2" C.T. Blade 45T
  • Vise
  • Dust Bag
  • Triangle Rule
  • Hex Wrench 5

Voltage

40 V

Blade Size

8-1/2"

Battery Type

Lithium-Ion

Mitre Range

60° Left/60° Right

Components

Tool, Battery & Charger

Arbor Size

5/8" (15.88 mm)

No Load Speed

4800 RPM

Vibration Level

2.5 m/s²

Noise Level

89 dB(A)

Dimensions

27-5/8" L x 21-3/4" W x 22" H

Weight

36.9 lbs. (16.7 kg)

Country Of Origin

China

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch allows operator to run dust extractor when mitre saw is not running for maximum dust collection and cleaning after operation
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing/production applications
  • “Zero clearance” rail forward design enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control
  • LED cut line indication enables easy and precise alignment of blade and material for fast and accurate cutting with no adjustment required
  • Bevel capacity of 48° left or right
  • Mitre capacity of 60° left or right with positive stops at 0°, 15°, 22.5°, 31.6°, and 45°
  • Easy to operate mitre angle lock with free spin releasing and locking levers
  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation
