Lincoln Electric

Square Wave® 205 TIG Welder

Model: TTV841

Mfr. No.: K5613-1

  • Square Wave® 205 TIG Welder OSI Industrial Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$3,126.00 / Each

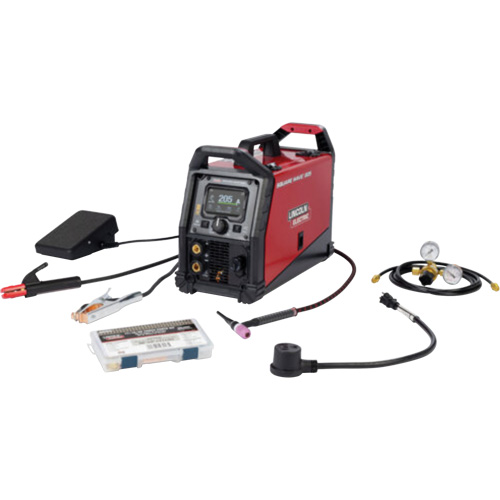

Includes

  • Square Wave 205 TIG Welder
  • K5339-17F-1 Caliber 17 TIG Torch Ready-Pak®
  • K870 Foot Amptrol™
  • Gas Regulator/Flowmeter & 10 ft (3 m) Gas Hose Kit
  • Stick Electrode Holder 200A
  • Ground Clamp & Cable
  • 120 & 230V Adapter
  • Caliber® 17/18/26 Series TIG Torch Expendables Kit - 0.040"-3/32" (KP4760-MD)
  • Caliber® 17 Series TIG Torch Ready Pak - Rigid, 12.5 ft. (3.8 m) (K5339-17-1)
  • Model 601-Ar5-30-580 Single-Stage Flow gauge Regulator (3000369)
  • Foot Amptrol™ - 25 ft (7.6m) (6 pin) (K870)

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

120 V/230 V

Phase Input Power

1 Ph

Dimensions

18.5" H x 8" W x 13" D (470 mm x 203 mm x 330 mm)

Weight

36 lbs. (16 kg)

Machines Processes

Stick (SMAW), TIG (GTAW)

Amphenol Pins

6

Work Lead Connector Type

Dinse

Work Cable Length

10'

Applications

Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair

Country Of Origin

Mexico

  • For a wider or tighter welding bead, users can easily adjust AC Frequency Control
  • AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials
  • The multi-process machine can TIG weld when precision and bead appearance are important
  • Users also have the advantage of stick welding capability for outdoor work or thicker materials
  • Plug in the Square Wave 205 where you need it - a standard 120V circuit or 230V for maximum output
  • Portable and convenient to use, only 36lbs (16 kg)
